Quick Details

  • Condition: New
  • Application: painting
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: DINO-POWER
  • Model Number: DP-6820
  • Name: DP-6820 Electric airless paint sprayer in diaphragm pump
  • Type: Electric & diaphragm
  • Motor power: 750w
  • Pressure controlling: mechanical
  • Electric motor: induction motor

Packaging & Delivery

Packaging Details: one set per carton box
size: 48.5*48.5*63cm
Delivery Detail: 30days for formal order

Specifications

DP-6820 Electric airless paint sprayer in diaphragm pump
1HP/750W motor
Max pressure:227bar/3300psi
2.0L/min
Max. tip:0.019"

 DP-6820 Electric airless paint sprayer in diaphragm pump

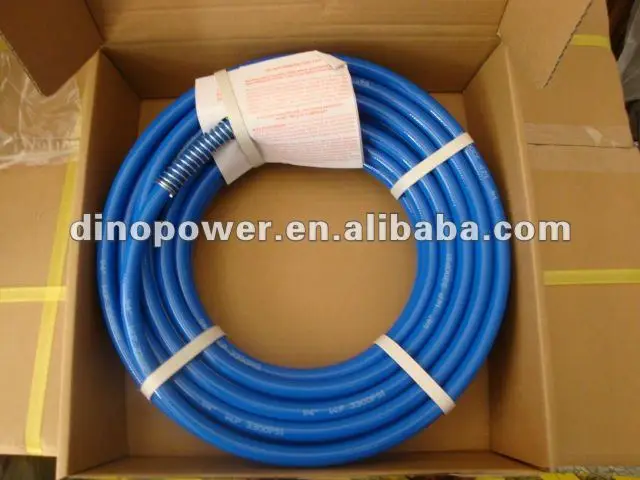

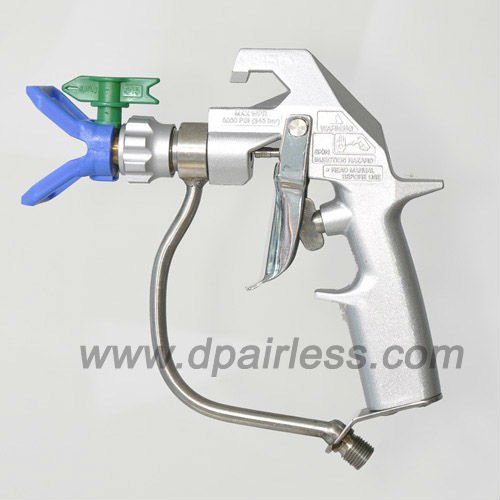

DP-6820 airless paint sprayer with diaphragm pump (1HP 2.0L) is equipped on a chromed wheeled cart. This unit can handle most kinds of small to medium size painting jobs indoor & outdoor, for coating of stains, lacquer, colorant, enamel, acrylic, latex etc. No matter it’s water-based or oil-based. Kit include 15m hose, airless spray gun with 517 spray tip & built-in filter, and one extra diaphragm for replacing, manual.

Features include:

Chrome coated wheeled cart

Wheeled chrome coated cart, for easy moving, and hose storing. Easy to move it.

TEFC induction motor

TEFC induction motor with guaranteed reliable quality. No carbon brush, no spark. And very low noise.

Reliable pressure control valve

Reliable mechanical pressure control valve, performs like a electronic one.

Stainless steel suction tube

Stainless steel suction tube with 2-layers inlet filter, and easy screw-in connector to the inlet valve.

Quality proven inlet/outlet valves

Stainless steel + tungsten of carbide inlet/outlet valve ensure you 100% good performance.

It’s adaptable for use with a paint roller attachment for interior projects.

Supports hose length up to 45m maximum, and max.0.019″ spray tip

Ideal for small contractors, and large painting project.

Technical data:

Model number.

DP6820

Type

Electric & diaphragm

Pressure controlling

Mechanical

Power

750w

Max.pressure (bar)

227bar/3300psi

Max.delivery (L/min)

2.0 L/min

Max.tip size (inch)

0.019”

Max.hose length (m)

30m

Hose operating pressure

210bar/3050psi

Hose exploded pressure

800bar/11620psi

Electric Motor

Induction motor (brushless)

Paint viscosity

Low to Medium

both water-based & oil-based?

Yes

Net weight

27KGS

Gross weight

29KGS

Carton size

48.5×48.5×63 cm

Spare parts for repairing1. Diaphragm.
2. Outlet valve
3. Inlet valve
4. Airless tip / tip gasket / tip guard / filter
Contents in packageAirless paint sprayer,  airless spray gun with 517 tip, 1/4*15m hose,   repair kit, manual.
